The “Ultimate” in protection comes from our shock mounted 19 inch rack case range. Flight Cases to house industry standard servers, PCs and broadcast 19" rack mounted equipment - made from Birch plywood faced with a high pressure laminate/Thermoplas coating available in many colours or black phenolic GRP finish otherwise known as Hexaboard. Hardware includes steel ball corners, recessed padlocking butterfly catches, 100mm swivel castors and steel flip handles with rubber grips. Label dishes and air vents can be added at extra cost.
Our Shock Mounted 19" Rack Flight Cases are an essential solution for transporting delicate equipment.

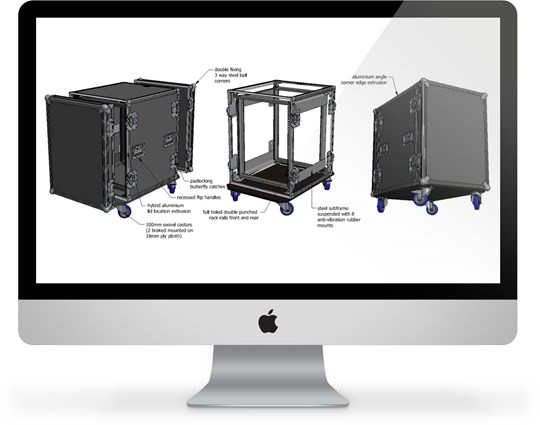

Also featuring a floating powder coated steel sub-frame allowing complete air circulation, with punched double rack rails fitted front and rear, suspended with 8 rubber Anti-Vibration units which can safely support and transport up to 400kg in weight. Further to the AV units, plastazote foam buffers are fitted to ensure that "grounding" of the subframe never occurs during instances of sharp shock. Cases come fitted with front and rear removable doors as standard.
Standard design cases of unit height 6 and over include swivel castors with 100mm blue resilex wheels (2 braked). These are mounted on 18mm Birch Ply wheelie boards. Castors can be mounted on the rear of the case at an extra cost of £40.00 to cover the cost of extra handles. All cases come supplied with 2 sets of fixings for every unit size. (i.e. 12 screws, 12 cup washers and 12 cage nuts for 6 unit case). Extra fixings are available at an extra cost if required.
Prices are based on our standard designs and are exclusive of delivery and VAT.
Click here for rack accessories.
Sub frames are available from 2u to 24u in height and depths of 362mm - 807mm in ten different standard sizes (see drawings for details). These are normally mounted 50mm off front and rear edges of case as standard, adding approximately 100mm to overall depth of case sleeve. Shock mounts are available with bearing loads of 50kg, 90kg & 200kg per set of 8. We can also double up on 200kg shockmounts giving a bearing load of 400kgs. This adds £35.00 to the price of the case. Please state preference when placing order.
Taller and deeper cases can be made by special arrangement. Contact us for more details.
We highly recommend using a pair of R8840 support shelves for each piece of equipment that is being installed. These attach to the front and rear rails and help distribute the weight of the equipment.
These standard design flight cases are manufactured in compliance with the Air Transport Association ATA-300 regulations and the Electronic Industries Association EIA-310-D standard.
Logos can be silk screen printed to the panels to add a corporate or personal identity.
Click here for rack accessories.
Click here for standard case prices.
Request a Quote
Our products are carefully and accurately designed using specially adapted 2D and 3D CAD (Computer Aided Design) programs.
The interiors of our products can be customised to accomodate the contents they are carrying and assist with shock aborbing.
All designs are sent to you to be fully approved before commencing production.
Request a Quote
Although we’re always on hand to guide and advise our customers, our transit cases are designed in-house and manufactured to your exact specifications regarding shape, size, and colour. Additional accessories and fittings can also be ordered into stock, if necessary.
All of our bespoke flight cases are manufactured here in the UK by our team of experts. We use only the best quality materials to ensure your fragile items are kept as secure as possible when you’re on the go.
Dragon Cases has been accredited BS EN ISO 9001:2015 certification for the supply of standard and custom flight cases, including transit protective cases.
(click Ref to view cad drawing)
| 362mm/407mm/462mm/507mm/562mm Sub-frame | 607mm/662mm/707mm/762mm/807mm Sub-frame | ||
|
Ref & drawings |
Unit Height | Black Coloured Hexaboard Laminate |
Black Coloured Hexaboard Laminate |
| F192USM | 2 | £534.00 £586.00 | £554.00 £609.00 |
| F193USM | 3 | £543.00 £597.00 | £565.00 £621.00 |
| F194USM | 4 | £553.00 £608.00 | £573.00 £630.00 |
| F196USM | 6 | £623.00 £686.00 | £676.00 £744.00 |
| F198USM | 8 | £683.00 £751.00 | £710.00 £781.00 |
| F1910USM | 10 | £735.00 £810.00 | £765.00 £840.00 |
| F1912USM | 12 | £755.00 £829.00 | £784.00 £863.00 |
| F1914USM | 14 | £792.00 £910.00 | £823.00 £905.00 |
| F1916USM | 16 | £812.00 £893.00 | £843.00 £929.00 |
| F1918USM | 18 | £832.00 £915.00 | £866.00 £954.00 |
| F1920USM | 20 | £853.00 £937.00 | £886.00 £974.00 |
| F1922USM | 22 | £885.00 £962.00 | £909.00 £1,000.00 |
| F1924USM | 24 | £913.00 £1,004.00 | £949.00 £1044.00 |
These Prices are based on using 50kg, 90kg or 200kg anti-vibration shock mounts. For a weight bearing of 400kgs, please add £35.00 per case.
Prices are based on our standard designs and are exclusive of delivery and VAT.
Sizes higher than 24u are available on request.
May 2022
